Smart vision inspection system for identification and removal of foreign particles during black tea processing

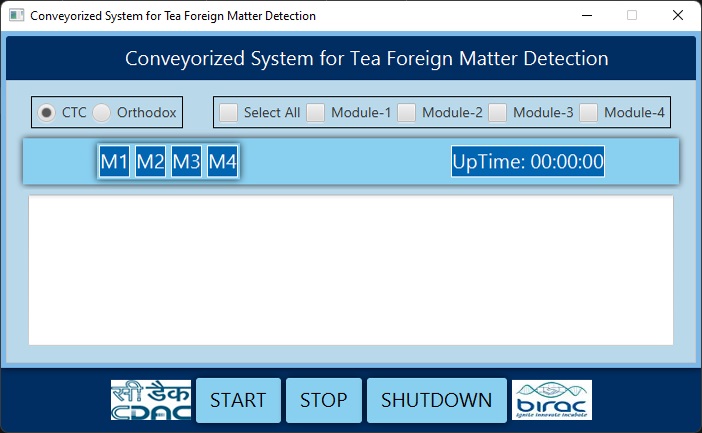

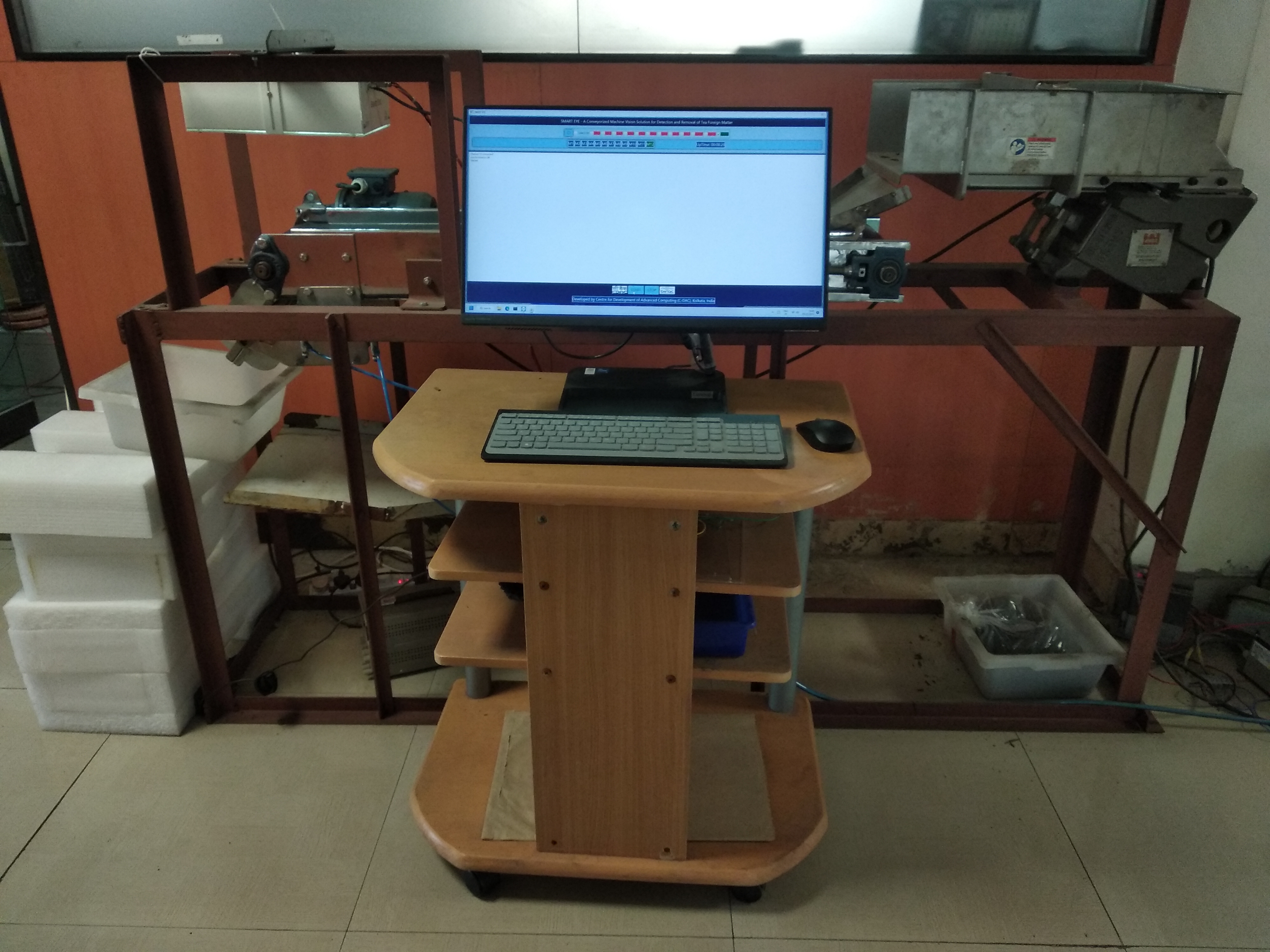

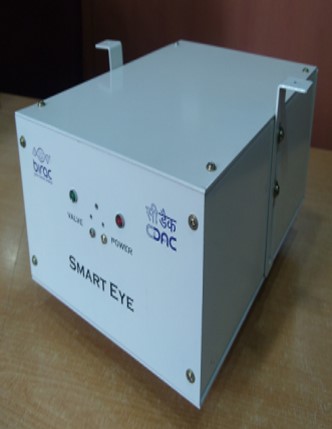

USP: 1. A light weight, modular designed conveyor based system with variable speed controller. 2. Specially designed hopper fitted with the conveyor to dispense even layer of tea sample for better detection accuracy of foreign matter. 3. Each vision inspection module comprises of a low cost single board computer with a very small form factor, a USB camera connected with it, illumination circuitry to illuminate the passing tea, relay circuitry for pneumatic flap controlling and other necessary circuitry and cabling. 4. Vision inspection units are modular in nature which can be easily operated through the remote control unit GUI. 5. Advanced feature extraction technique implemented to analyze different types of foreign materials from images. 6. User friendly GUI application developed and installed within the remote control unit so that any unskilled person can operate the system.
- Innovator's Name
- Product/Technology Description
C-DAC, Kolkata
- Product Name: Smart vision inspection system for identification and removal of foreign particles during black tea processing
- Product Title: In tea industries, one of the common problems is the presence of organic and inorganic foreign matter within the processed tea. Foreign matters may be introduced in tea during the inception of tea processing to packaging stage. The dead insects, insect fragments, webs, dead larvae etc are the main foreign matters those mixed with tea leaves during tea processing. Various inorganic materials such as metal, plastic, stones, nylon, glass, wood may be mixed with tea during tea processing. Tea processing industries are very careful when it comes to detection of foreign bodies in made tea because it can lead to injury to customers. This, in turn, can cause loss of loyalty as well, recalls and rejections. Manual sorting process for cleaning of foreign matter in tea industry is laborious, time consuming and prone to human mistakes. The present work discloses a system which captures the images of processed tea passing through the conveyor and analyse the captured images to detect the visible foreign matter presents on
- Description:
- Unique Selling Point: 1. A light weight, modular designed conveyor based system with variable speed controller. 2. Specially designed hopper fitted with the conveyor to dispense even layer of tea sample for better detection accuracy of foreign matter. 3. Each vision inspection module comprises of a low cost single board computer with a very small form factor, a USB camera connected with it, illumination circuitry to illuminate the passing tea, relay circuitry for pneumatic flap controlling and other necessary circuitry and cabling. 4. Vision inspection units are modular in nature which can be easily operated through the remote control unit GUI. 5. Advanced feature extraction technique implemented to analyze different types of foreign materials from images. 6. User friendly GUI application developed and installed within the remote control unit so that any unskilled person can operate the system.
